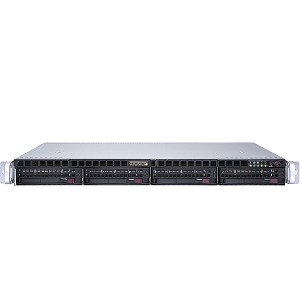

Supermicro SYS-6019P-MT 6019P-MT C621 Xeon LGA3647 1U w/ 500W PSU

Supermicro 6019P-MT C621 Xeon LGA3647 1U w/ 500W PSU - (Discontinued)

Support: (408) 503-8000

Supermicro 6019P-MT C621 Xeon LGA3647 1U w/ 500W PSU - (Discontinued)

SKU:	850-11740C

2x LGA3647 Xeon Scalable family
Max 1TB DR4 2666/2400/2133 ECC Reg (8 DIMMs)
4x 3.5" SATA bays - Hot Swap - RAID 0, 1, 10, 5
Marvell 88E1512 Dual port RJ45 Gigabit LAN
Integrated IPMI 2.0 with KVM and Dedicated LAN

Our Price:	Login to see price
Discontinued	- Not orderable

What's New

: Micron 48GB DDR5-6400 ECC Reg CL52 1Rx4 288-pin RDIMM

: Micron 96GB DDR5-6400 ECC Reg CL52 2Rx4 288-pin RDIMM

: Micron 32GB DDR5-6400 ECC Reg CL52 2Rx8 288-pin RDIMM

The Supermicro 6019P-MT supports Intel Xeon Scalable Family Processor, 8-DIMM DDR4 ECC RDIMM/LRDIMM memory with speeds of up to 2666MHz, SATA 3.0 ports, a M.2 slot offers numerous advantages over previous generations including the highest levels of performance, efficiency, security and scalability in the industry.

Description

Specifications

Server Case Form Factor

1U
17.2" x 19.8" x 1.7" (W x D x H)

Processor

Intel Xeon processor Scalable family with maximum TDP of 205W.
Socket P
Dual (Not Included)

Chipset

Intel C621

Bios

AMI 32Mb SPI Flash ROM

Type of Memory Supported

DDR4-2666/2400/2133MHz ECC RDIMM/LRDIMM

Maximum Memory Supported

3DS LRDIMM: 1TB
LRDIMM: 512GB

Number of Memory Slots

Slots

1 x PCIe 3.0 X8

Rear I/O Ports

2 x USB 2.0 ports
1 x VGA
2 x RJ45 LAN
1 RJ45 Dedicated IPMI LAN

Video

Aspeed AST2500 BMC

LAN

Marvell 88E1512 Gigabit LAN

SATA / SAS

4 x SATA 6Gb/s
1 x M.2 2260/2280 PCIe 3.0 x4

USB Port (s)

2 x USB 2.0

Optical Drive(s)

Not Included

Ext. Drive Bays

4 x 3.5" SATA

Power

500W High-Efficiency Power Supply w/PMBus 1.2, I2C, and PFC

Motherboard Manufacturer

Supermicro X11DPL-i

Manageability

IPMI 2.0 and KVM with Dedicated LAN

The above specifications are For reference only. Please contact the original manufacturer For the most updated specifications.

Warranty and Service

Warranty Length: 1 year
Warranty Provider: Supermicro
Service Contact:
1. First 30-day from invoice date: Allstarshop On-line RMA Request
  This item is returnable for replacement only. It can only be exchanged with the same item.
2. After 30-day from invoice date: Contact Supermicro at (408) 503-8000 Or visit Supermicro customer service online.
Technical Support: Supermicro (408) 503-8000 or visit Supermicro technical support online.
